Compact Disc Player CD303 /00 /01 /05 /10

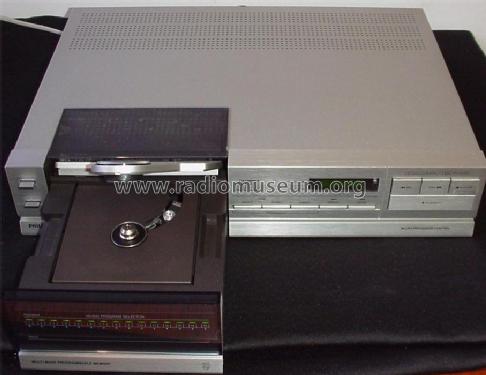

Compact Disc Player CD303; Philips; Eindhoven (ID = 473286) R-Player Compact Disc Player CD303; Philips; Eindhoven (ID = 473288) R-Player
Compact Disc Player CD303; Philips; Eindhoven (ID = 473290) R-Player Compact Disc Player CD303; Philips; Eindhoven (ID = 473292) R-Player
Compact Disc Player CD303; Philips; Eindhoven (ID = 473294) R-Player Compact Disc Player CD303; Philips; Eindhoven (ID = 637859) R-Player
Compact Disc Player CD303; Philips; Eindhoven (ID = 637860) R-Player Compact Disc Player CD303; Philips; Eindhoven (ID = 637861) R-Player
Use red slider bar for more.
Compact Disc Player CD303; Philips; Eindhoven (ID = 473286) R-Player
Philips; Eindhoven: Compact Disc Player CD303 [R-Player] ID = 473286 933x478
Select picture or schematic to display from thumbnails on the right and click for download.
For model Compact Disc Player CD303 /00 /01 /05 /10, Philips; Eindhoven (tubes international!); Miniwatt:
aus ebay, Verkäufer jam-music

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1983 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details CD-Player, -Writer, MD, MOD (audio)
Power type and voltage Alternating Current supply (AC) / 110; 127; 220; 240 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Compact Disc Player CD303 [/00 /01 /05 /10] - Philips; Eindhoven tubes
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 420 x 88 x 315 mm / 16.5 x 3.5 x 12.4 inch
Notes

CD-Spieler der 1. Generation. CDM0 CD transport, 2 x TDA1540D 14 bit DACs with 4 times oversampling.

Specification
Frequency Range ..............:  20Hz-20kHz ± 0.05dB
Signal to Noise Ratio .........:  ≥ 90dB (20Hz-20kHz)
Channel separation ...........:  ≥ 86dB (20Hz-20kHz)
Total Harmonic Distortion...:  ≤ 0.01%
Intermodulation Distortion .:  ≤ 0.005%

Versions/Power Requirements :
/00         220 V AC 50Hz
/05         240 V AC 50HZ
/01 /10   110/127/220/240 V AC 50-60HZ with voltage selector

Same as the US market Magnavox FD3030 model.

Made in Belgium

Net weight (2.2 lb = 1 kg) 8 kg / 17 lb 9.9 oz (17.621 lb)
Source of data -- Collector info (Sammler)
Literature/Schematics (1) - - Manufacturers Literature (Service manual for the Philips CD303 dated 1983-07-02)

Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
