Compact Disc Player CD480

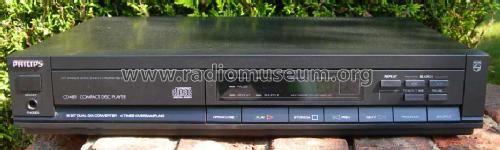

Compact Disc Player CD480; Philips; Eindhoven (ID = 978735) R-Player Compact Disc Player CD480; Philips; Eindhoven (ID = 978737) R-Player

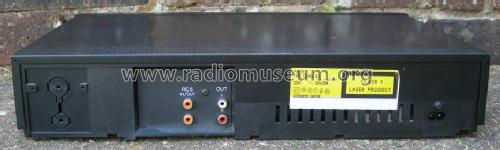

Compact Disc Player CD480; Philips; Eindhoven (ID = 978739) R-Player
Use red slider bar for more.
Compact Disc Player CD480; Philips; Eindhoven (ID = 978735) R-Player
Philips; Eindhoven: Compact Disc Player CD480 [R-Player] ID = 978735 933x280
Select picture or schematic to display from thumbnails on the right and click for download.
For model Compact Disc Player CD480, Philips; Eindhoven (tubes international!); Miniwatt:
A 1989 Philips CD480 Compact Disc Player .

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1989 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details CD-Player, -Writer, MD, MOD (audio)
Power type and voltage Alternating Current supply (AC) / 110; 120; 220; 240 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Compact Disc Player CD480 - Philips; Eindhoven tubes
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 420 x 81 x 280 mm / 16.5 x 3.2 x 11 inch
Notes CDM4/19 CD transport, 2 x TDA1541A 16 bit DACs with 4 times oversampling filter. Made in Belgium.
Literature/Schematics (1) - - Manufacturers Literature

Model page created by Howard Craven. See "Data change" for further contributors.
