• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1985

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 126472

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• FM Broadcast Band Only

• Power type and voltage
• Dry Batteries / 3 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.5 cm = 1.4 inch

• Power out
• 0.2 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

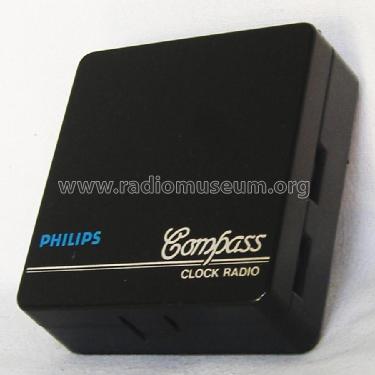

• Model: Compass Clock Radio D1858 /02R /03R - Philips; Eindhoven tubes

• Shape
• Design Radio or Novelty / Gadget - fancy or unusual shape.

• Dimensions (WHD)
• 65 x 27 x 74 mm / 2.6 x 1.1 x 2.9 inch

• Notes
• Im aufklappbaren Deckel (Betriebszustand) befindet sich innen eine Digitaluhr mit LCD-Anzeige, das Unterteil enthält das Radio nebst Wurfantenne (aufgerollt in einem Fach).

• Net weight (2.2 lb = 1 kg)
• 0.1 kg / 0 lb 3.5 oz (0.22 lb)

• Author
• Model page created by Günther Stabe † 19.8.20. See "Data change" for further contributors.

• Other Models

• Here you find 5233 models, 4365 with images and 3445 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
