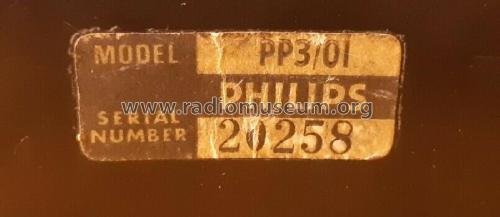

Cosmopolitan 8 PP3/01

Country:  Australia
Manufacturer / Brand:  Philips Australia
Year: 1966 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 8: BF184 BF184 BF185 BF185 BC108 AC128 AC187 AC188 AA119 AA119
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Batteries / addl. power jack / 9 Volt
Loudspeaker Presumably Dynamic Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Cosmopolitan 8 PP3/01 - Philips Australia
Material Various materials
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 8.6875 x 4.1875 x 2 inch / 221 x 106 x 51 mm
Notes

This model differs from Cosmopolitan model PP3 by a change in the RF module which uses silicon RF transistors instead of germanium types.

Complete with leather carrying case & strap. Converts to mains operation using Philips Power Pack.

Price in first year of sale 65.00 AUS $
Literature/Schematics (1) - - Manufacturers Literature (Philips Service Notes, Oct 1966.)
Literature/Schematics (2) J.R. Publications Radio Service Handbook (Group C5, 1968, Page P44.)

Model page created by Martin Kent. See "Data change" for further contributors.
