Cubic Compo AM-FM Stereo Radio Cassette Recorder D8264 /00 /02 /05

Philips, Singapore

Data
Forum
Pictures
Collections

  • Year
  • 1986 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 324924

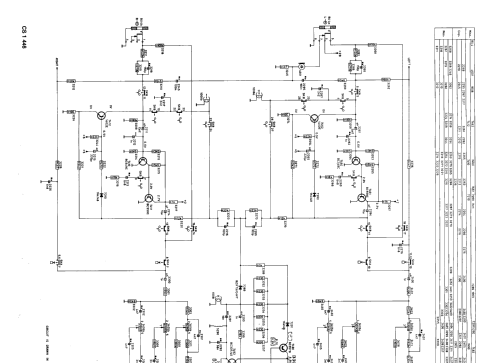

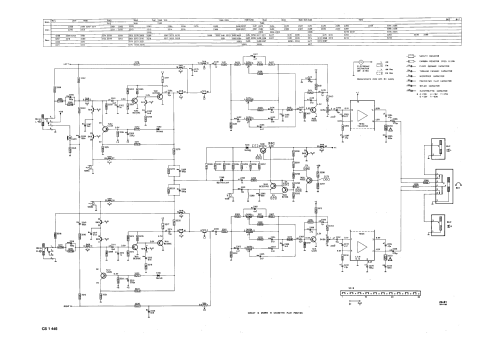

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 468/10700 kHz
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Line / Batteries (any type) / 110; 220; 240 / D: 6 x 1,5 Volt
  • Loudspeaker
  • 2 Loudspeakers
  • Power out
  • 2.8 W (4 W max.)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Cubic Compo AM-FM Stereo Radio Cassette Recorder D8264 /00 /02 /05 - Philips, Singapore
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Notes

  • Two detachable speakers.

    Tape mechanism see RT-1 and RT-33.

  • Literature/Schematics (1)

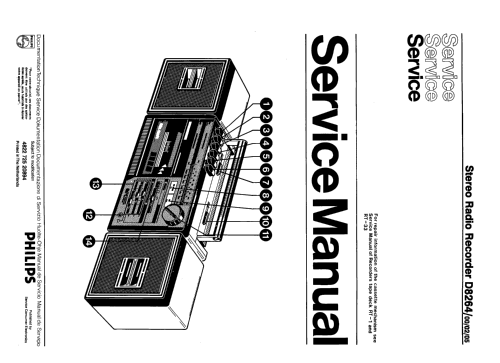

  • -- Original-techn. papers.
  • Author
  • Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
