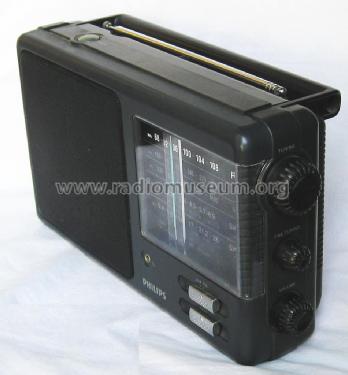

For model D2345, Philips 飞利浦; China

Country:  People's Republic of China
Manufacturer / Brand:  Philips 飞利浦; China
Year: 1990 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
Details

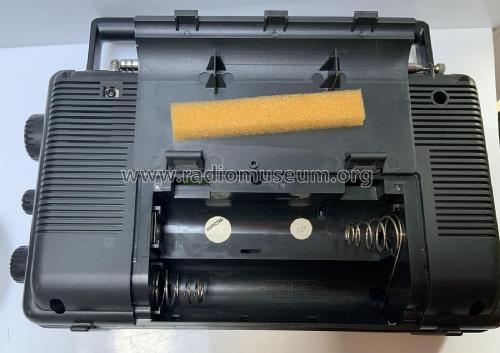

Power type and voltage Line / Batteries (any type) / 220 / 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 cm = 2.8 inch
Power out 1 W (unknown quality)
from Radiomuseum.org Model: D2345 - Philips 飞利浦; China
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 260 x 155 x 70 mm / 10.2 x 6.1 x 2.8 inch
Notes In due gamme di onde corte copre la gamma dagli 11m ai 75m (da 4 a 26,5 Mhz)
Net weight (2.2 lb = 1 kg) 1 kg / 2 lb 3.2 oz (2.203 lb)
Price in first year of sale 65'000.00 ITL

Model page created by Fabio Rizzo. See "Data change" for further contributors.
