D26K185 D 26 K 185 Ch=K8D
Philips Radios - Deutschland
- Country
- Germany
- Manufacturer / Brand
- Philips Radios - Deutschland
- Year
- 1972
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 104877
-
- Brand: Deutsche Philips-Ges.

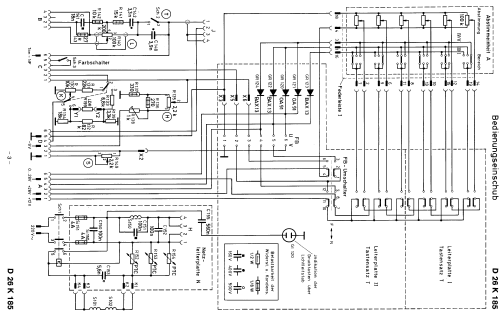

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 15
- Number of Transistors
- 79
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: D26K185 D 26 K 185 Ch=K8D - Philips Radios - Deutschland
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 770 x 510 x 580 mm / 30.3 x 20.1 x 22.8 inch
- Notes
- 89 Dioden, 2 ICs. Röhren teilweise mehrfach vorhanden. Tuner mit Kapazitätsdioden für VHF und UHF.
Letztes Philips CTV-Röhren-Chassis, mit 110° Dickhalsröhre.
Laut Service-Doku trägt das Gerät keinen Namen.
- Net weight (2.2 lb = 1 kg)
- 46 kg / 101 lb 5.1 oz (101.322 lb)
- Mentioned in
- -- Original-techn. papers.
- Author
- Model page created by Franz Born †. See "Data change" for further contributors.
