• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1980 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 139373

• • Brand: Deutsche Philips-Ges.

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 4

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 220 / 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.5 cm = 2.2 inch

• Power out
• 0.8 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

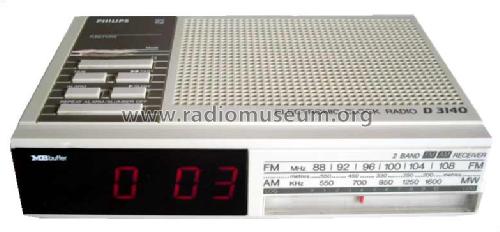

• Model: D3140/02 - Philips Radios - Deutschland

• Shape
• Tablemodel with Clock ((Alarm-) Clock Radio).

• Dimensions (WHD)
• 175 x 50 x 135 mm / 6.9 x 2 x 5.3 inch

• Notes
• ICs: TEA 5570, MM 5457.

• Source of data
• - - Data from my own collection

• Author
• Model page created by Bernd Pötzsch. See "Data change" for further contributors.
