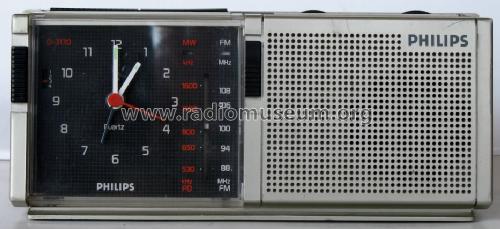

D3170/02

D3170/02; Philips Radios - (ID = 470263) Radio D3170/02; Philips Radios - (ID = 470265) Radio
D3170/02; Philips Radios - (ID = 470266) Radio D3170/02; Philips Radios - (ID = 470264) Radio
D3170/02; Philips Radios - (ID = 470267) Radio D3170/02; Philips Radios - (ID = 890833) Radio
D3170/02; Philips Radios - (ID = 890834) Radio D3170/02; Philips Radios - (ID = 890835) Radio
Use red slider bar for more.
D3170/02; Philips Radios - (ID = 470263) Radio
Philips Radios -: D3170/02 [Radio] ID = 470263 933x551
Select picture or schematic to display from thumbnails on the right and click for download.
For model D3170/02, Philips Radios - Deutschland:
Thanks for technical assistance Első Zalai Rádiómúzeum Alapítvány ( radio-muzeum.hu), First Zala County Radio Museum Foundation, Hungary, Zalaegerszeg.

Country:  Germany
Manufacturer / Brand:  Philips Radios - Deutschland
Brand

Deutsche Philips-Ges.
Year: 1985 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details

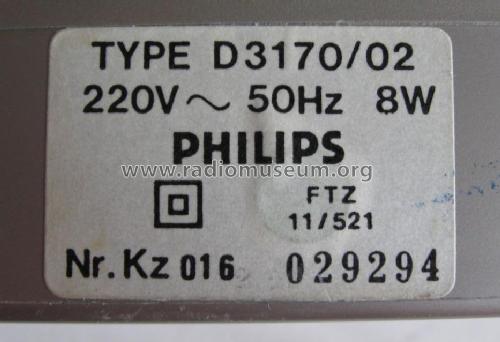

Power type and voltage Line / Batteries (any type) / 220 & 1,5 für Uhr Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: D3170/02 - Philips Radios - Deutschland
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel with Clock ((Alarm-) Clock Radio).
Dimensions (WHD) 205 x 90 x 78 mm / 8.1 x 3.5 x 3.1 inch
Net weight (2.2 lb = 1 kg) 0.7 kg / 1 lb 8.7 oz (1.542 lb)
Source of data - - Data from my own collection

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
