• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1982 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 116924

• • Brand: Deutsche Philips-Ges.

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors
• ED1402 TBA820 MK50372 CD4069 ED1502 ED1602 ED1702 ED1802 TBA820 MK50372 CD4069 CDG00 CDG24 1N60 BA317

• Main principle
• Superheterodyne (common); ZF/IF 468/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 50Hz, 220 & battery for clock back-up: 1 x 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8.5 cm = 3.3 inch

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

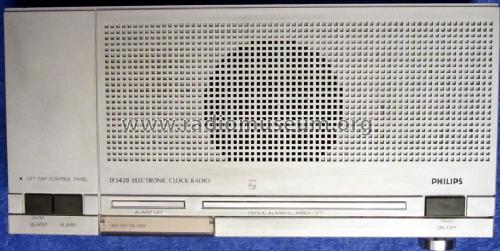

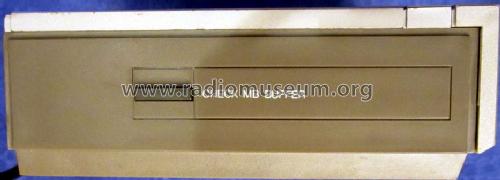

• Model: D3420 - Philips Radios - Deutschland

• Shape
• Tablemodel with Clock ((Alarm-) Clock Radio).

• Dimensions (WHD)
• 300 x 55 x 145 mm / 11.8 x 2.2 x 5.7 inch

• Notes

• Each semiconductor listed once.

  Made in Hong Kong.

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Bernd Pötzsch. See "Data change" for further contributors.
