Radio Recorder D7160 /00 /01 /02 /05 /10 /17

• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1986/1987

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 145084

• • Brand: Deutsche Philips-Ges.

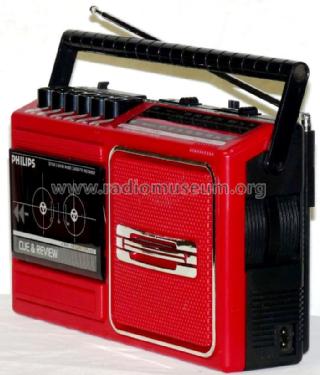

• Picture

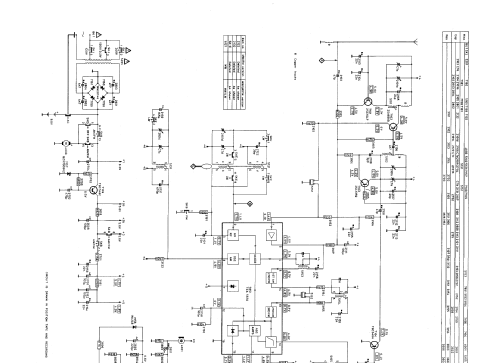

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 8

• Semiconductors
• 2SC1047 2SA838 2SC1359 TBC548 TBC548 TBC548 TBC548 TBC548 TEA5570 U420B

• Main principle
• Superheterodyne (common); ZF/IF 455 or 468/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 120; 220; 240/6 × 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Power out
• 2 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Radio Recorder D7160 /00 /01 /02 /05 /10 /17 - Philips Radios - Deutschland

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 290 x 170 x 80 mm / 11.4 x 6.7 x 3.1 inch

• Notes

• AM/FM-Mono-Radio-Recorder mit AFC, Bandendabschaltung, automatische Aufnahmeaussteuerung, Cue-/Review, eingebautes Mikrofon

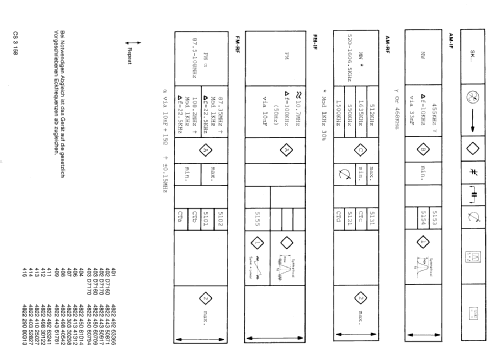

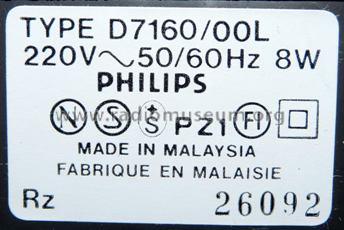

  Ausführung .../01 /10 /17 AM-ZF = 455KHz;
                   .../00 /02 /05 AM-ZF = 468KHz;
                   .../02 = AM 526,5 - 1605,5KHz, alle anderen 520 -1606KHz.

  Made in Malaysia

• Net weight (2.2 lb = 1 kg)
• 1.6 kg / 3 lb 8.4 oz (3.524 lb)

• Source of data
• -- Original prospect or advert

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
