D 1220/00

D 1220/00; Philips Radios - (ID = 651332) Radio
D 1220/00; Philips Radios - (ID = 2150830) Radio D 1220/00; Philips Radios - (ID = 432335) Radio
D 1220/00; Philips Radios - (ID = 432336) Radio
Use red slider bar for more.

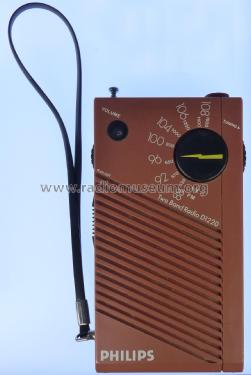

D 1220/00; Philips Radios - (ID = 2150830) Radio
Philips Radios -: D 1220/00 [Radio] ID = 2150830 1400x2085
Select picture or schematic to display from thumbnails on the right and click for download.
For model D 1220/00, Philips Radios - Deutschland:
Gerät liegt in der DASA Arbeitswelt Ausstellung.

Country:  Germany
Manufacturer / Brand:  Philips Radios - Deutschland
Brand

Deutsche Philips-Ges.
Year: 1985 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 2: S9016 S9016 TA7613 or. TDA1083
Main principle Super-Heterodyne (Super in general); ZF/IF 460/10700 kHz
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Dry Batteries / 3 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: D 1220/00 - Philips Radios - Deutschland
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 140 x 75 x 34 inch / 3556 x 1905 x 864 mm
Notes IC and transistors
Net weight (2.2 lb = 1 kg) 0.3 kg / 0 lb 10.6 oz (0.661 lb)
Source of data -- Schematic

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
