DC Power Amplifier 309 22AH309 /00 /15

Philips; Eindhoven (tubes international!); Miniwatt

  • Year
  • 1980 ?
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 272947

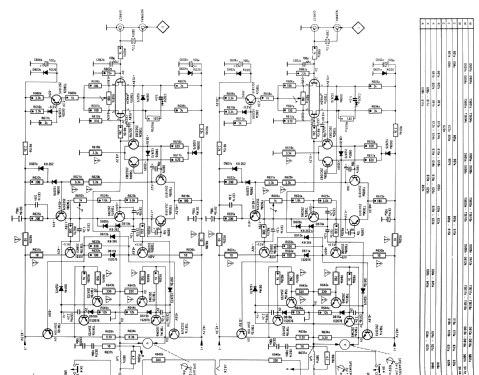

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Hi-Fi equipment
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 140 W (unknown quality)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: DC Power Amplifier 309 22AH309 /00 /15 - Philips; Eindhoven tubes
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 260 x 100 x 183 mm / 10.2 x 3.9 x 7.2 inch
  • Notes
  • HiFi-Stereo Leistungsverstärker.

  • Mentioned in
  • -- Original prospect or advert
  • Author
  • Model page created by Heiko zur Mühlen. See "Data change" for further contributors.
