DCC 821 22DC821 /00R

DCC 821 22DC821 /00R; Philips Radios - (ID = 604586) Car Radio DCC 821 22DC821 /00R; Philips Radios - (ID = 604588) Car Radio
DCC 821 22DC821 /00R; Philips Radios - (ID = 1395237) Car Radio DCC 821 22DC821 /00R; Philips Radios - (ID = 1395247) Car Radio
DCC 821 22DC821 /00R; Philips Radios - (ID = 1395248) Car Radio DCC 821 22DC821 /00R; Philips Radios - (ID = 1395249) Car Radio
DCC 821 22DC821 /00R; Philips Radios - (ID = 1395250) Car Radio DCC 821 22DC821 /00R; Philips Radios - (ID = 1395252) Car Radio
DCC 821 22DC821 /00R; Philips Radios - (ID = 1395254) Car Radio DCC 821 22DC821 /00R; Philips Radios - (ID = 2094775) Car Radio
Use red slider bar for more.
DCC 821 22DC821 /00R; Philips Radios - (ID = 604586) Car Radio
Philips Radios -: DCC 821 22DC821 /00R [Car Radio] ID = 604586 800x447
Select picture or schematic to display from thumbnails on the right and click for download.
For model DCC 821 22DC821 /00R, Philips Radios - Deutschland:

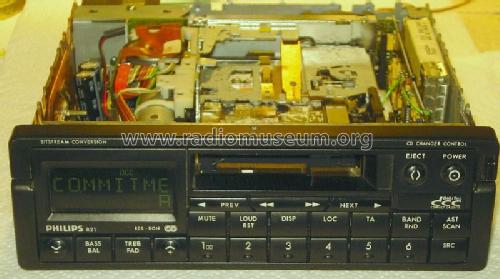

Mit eingelegter DCC (Seite A) und Titelanzeige (The Commitments)

Country:  Germany
Manufacturer / Brand:  Philips Radios - Deutschland
Brand

Deutsche Philips-Ges.
Year: 1993–1995 Category: Car Radio, perhaps also + sound player/recorder
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Special Tape or Cassette-Format; Radio with other functions
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
Loudspeaker - This model requires external speaker(s).
Power out 60 W (unknown quality)
from Radiomuseum.org Model: DCC 821 22DC821 /00R - Philips Radios - Deutschland
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 180 x 50 x 185 mm / 7.1 x 2 x 7.3 inch
Notes

Erstes RDS Autoradio mit DCC-Cassettenlaufwerk und CD-Wechsler-Steuerung.

UKW/FM mit RDS System, Funktionen PS (Program Service Name), TP (Traffic Program), TA (Traffic Announcement) und EON (Enhanced Other Networks).
18 Senderspeicher für FM; je 6 Speicher für MW / LW / KW.
Ausgangsleistung an 4 Ohm: 2 x 30 W oder 4 x 12 W

Vorbereitung für Autotelefon-Steuerung.

DCC: Abspielen von analogen Compactcassetten auch mit Dolby-B oder C, Scrolltext von Albumname und Titel von Kauf-DCC-Cassetten oder Titelnummer /Zeit. Persönliche Einstellungen im INIT-Mode.

Net weight (2.2 lb = 1 kg) 1.5 kg / 3 lb 4.9 oz (3.304 lb)
Source of data -- Original-techn. papers.
Mentioned in Philips - Radio TV and Home Entertainment Catalogs (Europa Magazin 1993/94, S. 116 (D))
Literature/Schematics (1) Philips Bedienungsanleitung DCC821

Model page created by Alfred Przybilla. See "Data change" for further contributors.



All listed radios etc. from Philips Radios - Deutschland
Here you find 2518 models, 2239 with images and 1529 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
