For model Discoteak GF370, Philips Australia:

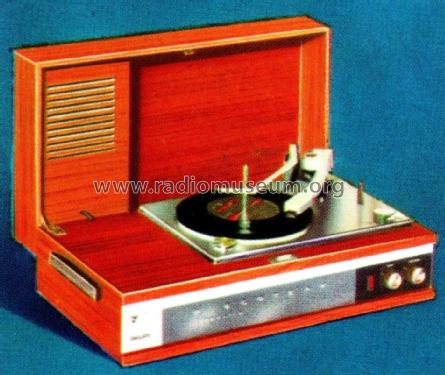

From brochure, courtesy of Andrew McCallum.

Country:  Australia
Manufacturer / Brand:  Philips Australia
Year: 1967/1968 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 5: BC109 BC108 AC128 AC187 AC188 BY114 BY114
Main principle Audio-Amplification
Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 220-250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Discoteak GF370 - Philips Australia
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 18 x 6.5 x 10.25 inch / 457 x 165 x 260 mm
Notes

Mains operated transistor gram with a 3-speed Philips GC032 (AG2032) mono record player in a real teak cabinet. Pick-up head Philips type GP224 (AG3224) With Philips audio module type UA501.

Price in first year of sale 99.95 AUS $

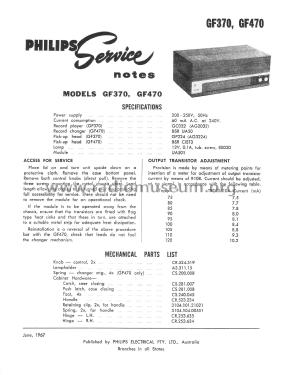

Literature/Schematics (1) - - Manufacturers Literature (Philips Service Notes, June 1967.)
Literature/Schematics (2) J.R. Publications Transistor Radio Service Handbook (Group G7, 1970, Page P1-10.)

Model page created by Martin Kent. See "Data change" for further contributors.
