Drehkondensator 5122 /400E

Drehkondensator 5122 /400E; Philips; Eindhoven (ID = 1832620) Radio part Drehkondensator 5122 /400E; Philips; Eindhoven (ID = 1832618) Radio part
Drehkondensator 5122 /400E; Philips; Eindhoven (ID = 1832617) Radio part Drehkondensator 5122 /400E; Philips; Eindhoven (ID = 1832621) Radio part

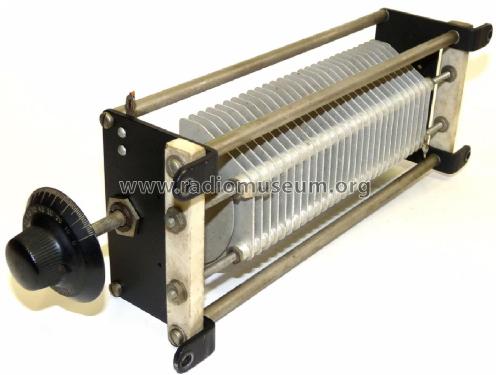

Drehkondensator 5122 /400E; Philips; Eindhoven (ID = 1832622) Radio part Drehkondensator 5122 /400E; Philips; Eindhoven (ID = 1832623) Radio part
Drehkondensator 5122 /400E; Philips; Eindhoven (ID = 1832624) Radio part
Use red slider bar for more.
Drehkondensator 5122 /400E; Philips; Eindhoven (ID = 1832620) Radio part
Philips; Eindhoven: Drehkondensator 5122 /400E [Radio part] ID = 1832620 1400x827
Select picture or schematic to display from thumbnails on the right and click for download.
For model Drehkondensator 5122 /400E, Philips; Eindhoven (tubes international!); Miniwatt

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1930 ?? Category: Radio part (not a module)
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Drehkondensator 5122 /400E - Philips; Eindhoven tubes
Material Metal case
Shape Miscellaneous shapes - described under notes.
Dimensions (WHD) 90 x 65 x 260 mm / 3.5 x 2.6 x 10.2 inch
Notes

Der Einsatz des Kurzwellen-Drehkondensators Philips 5122 /400E war im Sender Aldrans in Tirol. Kapazität max. 400 pf.

Net weight (2.2 lb = 1 kg) 0.9 kg / 1 lb 15.7 oz (1.982 lb)

Model page created by Peter Roggenhofer † 25.4.18. See "Data change" for further contributors.
