DVD Player DVP5100 /00

DVD Player DVP5100 /00; Philips 飞利浦; (ID = 2380120) R-Player DVD Player DVP5100 /00; Philips 飞利浦; (ID = 2380121) R-Player
DVD Player DVP5100 /00; Philips 飞利浦; (ID = 2380122) R-Player DVD Player DVP5100 /00; Philips 飞利浦; (ID = 2380123) R-Player
DVD Player DVP5100 /00; Philips 飞利浦; (ID = 2380124) R-Player DVD Player DVP5100 /00; Philips 飞利浦; (ID = 2380125) R-Player
Use red slider bar for more.

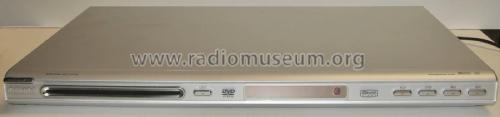

DVD Player DVP5100 /00; Philips 飞利浦; (ID = 2380120) R-Player
Philips 飞利浦;: DVD Player DVP5100 /00 [R-Player] ID = 2380120 1400x330
Select picture or schematic to display from thumbnails on the right and click for download.
For model DVD Player DVP5100 /00, Philips 飞利浦; China

Country:  People's Republic of China
Manufacturer / Brand:  Philips 飞利浦; China
Year: 2005 ?? Category: Sound/Video Recorder and/or Player
Valves / Tubes 1: 7-BT-295GNK
Semiconductors (the count is only for transistors) Semiconductors present. SC16312 PS2561 FSDL0165 MT1389 HY57V641620 AT5654 24C08 SN7404 BA4560 AKM4382 M29W800 TL431 TL431 µA78Lxx
Main principle Audio-Amplification
Wave bands - without
Details CD-DVD-VMD-Blu-ray for video; Radio Control (+Remote Wire etc)
Power type and voltage Alternating Current supply (AC) / 230 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: DVD Player DVP5100 /00 - Philips 飞利浦; China
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 435 x 37 x 265 mm / 17.1 x 1.5 x 10.4 inch
Notes

Player für (Video-)CD und DVD.

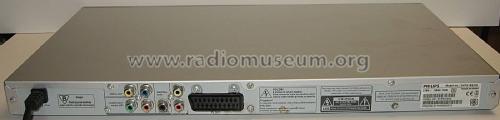

Ausgänge: Video Out, Component Video Out, TV-Out (SCART), Coaxial Digital-Audio Out, Analog-Audio Out L + R.

Leistungsaufnahme: 10W.

Made in China.

Halbleiterliste nicht vollständig.

Net weight (2.2 lb = 1 kg) 2.035 kg / 4 lb 7.7 oz (4.482 lb)

Model page created by Michael Mischke. See "Data change" for further contributors.
