Dynamic Noise Limiter (DNL) N6720 /15

Dynamic Noise Limiter N6720 /15; Philips Electronics (ID = 2544424) Misc
Dynamic Noise Limiter N6720 /15; Philips Electronics (ID = 1407360) Misc Dynamic Noise Limiter N6720 /15; Philips Electronics (ID = 1407361) Misc
Dynamic Noise Limiter N6720 /15; Philips Electronics (ID = 1407362) Misc Dynamic Noise Limiter N6720 /15; Philips Electronics (ID = 1407363) Misc
Dynamic Noise Limiter N6720 /15; Philips Electronics (ID = 1407364) Misc Dynamic Noise Limiter N6720 /15; Philips Electronics (ID = 1407365) Misc
Dynamic Noise Limiter N6720 /15; Philips Electronics (ID = 1407366) Misc Dynamic Noise Limiter N6720 /15; Philips Electronics (ID = 1407367) Misc
Dynamic Noise Limiter N6720 /15; Philips Electronics (ID = 2106914) Misc
Use red slider bar for more.
Dynamic Noise Limiter N6720 /15; Philips Electronics (ID = 1407360) Misc

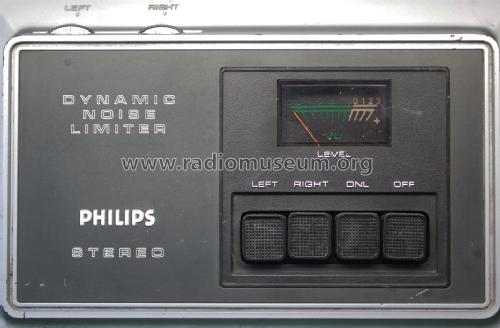

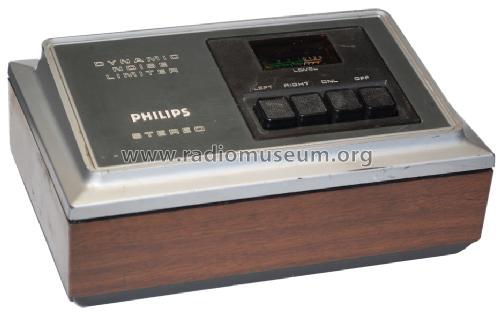

Philips Electronics: Dynamic Noise Limiter N6720 /15 [Misc] ID = 1407360 933x584
Select picture or schematic to display from thumbnails on the right and click for download.
For model Dynamic Noise Limiter (DNL) N6720 /15, Philips Electronics Japan, Ltd.; Tokyo

Country:  Japan
Manufacturer / Brand:  Philips Electronics Japan, Ltd.; Tokyo
Year: 1971–1974 Category: Miscellaneous (Other, Various) - see notes
Semiconductors (the count is only for transistors) Semiconductors present.
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110-127; 220-240 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Dynamic Noise Limiter N6720 /15 - Philips Electronics Japan, Ltd
Material Modern plastics (no Bakelite or Catalin)
Shape Miscellaneous shapes - described under notes.
Dimensions (WHD) 180 x 80 x 120 mm / 7.1 x 3.1 x 4.7 inch
Notes

Der Dynamic Noise Limiter "N6720" von Philips ist ein dynamischer "Rausch-Begrenzer" mit wirkungsvoller Rauschunterdrückung bei der "Wiedergabe" von TB-Geräten oder Kassetten-Recordern. Dieses kleine "externe" Gerät wird in den Signalweg - Ausgang TB-Gerät und Eingang des angeschlossenen Audio-Verstärkers geschaltet.

Technische Ausstattung:
DNL Funktion schaltbar, On/Off
Audio In/Out, 5 pol. DIN-Anschluss
Pegelregler für rechten und linken Kanal
Level-Anzeige für rechten oder linken Kanal (schaltbar).

Net weight (2.2 lb = 1 kg) 0.7 kg / 1 lb 8.7 oz (1.542 lb)

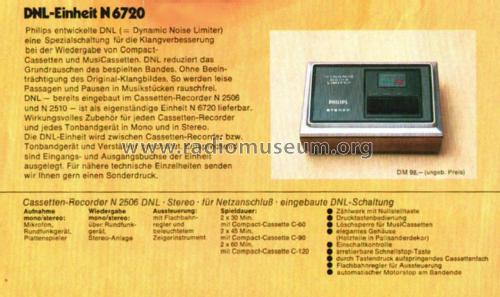

Mentioned in Philips - Radio TV and Home Entertainment Catalogs (Philips Prospekt 1973 Deutschland)
Literature/Schematics (1) Funk-Technik (FT) (23/1971, S. 870 / Beschreibung)
Literature/Schematics (2) Funk-Technik (FT) (17/1972, S. 613, 614 / Beschreibung, Schema)

Model page created by Jürgen Küting. See "Data change" for further contributors.
