Dynamisches Mikrofon SBC MD150/00

Dynamisches Mikrofon SBC MD150/00; Philips; Eindhoven (ID = 2358947) Microphone/PU Dynamisches Mikrofon SBC MD150/00; Philips; Eindhoven (ID = 2358948) Microphone/PU
Use red slider bar for more.

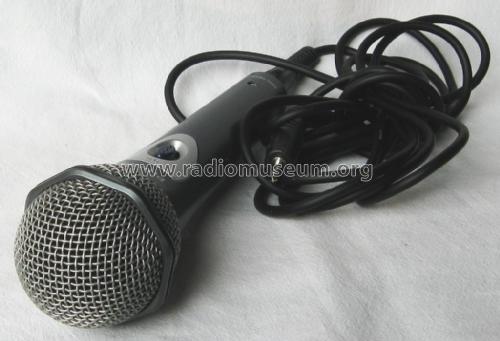

Dynamisches Mikrofon SBC MD150/00; Philips; Eindhoven (ID = 2358947) Microphone/PU
Philips; Eindhoven: Dynamisches Mikrofon SBC MD150/00 [Microphone/PU] ID = 2358947 1024x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Dynamisches Mikrofon SBC MD150/00, Philips; Eindhoven (tubes international!); Miniwatt

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 2008 ? Category: Microphone or Pick-up element
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Dynamisches Mikrofon SBC MD150/00 - Philips; Eindhoven tubes
Material Plastics (no bakelite or catalin)
Shape Miscellaneous shapes - described under notes.
Dimensions (WHD) 50 x 50 x 235 mm / 2 x 2 x 9.3 inch
Notes

Dynamisches unidirektionales Mikrofon mit 3m Anschlusskabel und 3,5mm Mono-Klinkenstecker. Frequenzgang: 85 - 11000 Hz, Impedanz: 600 Ohm, Empfindlichkeit: -74 dB +/- 3 dB.

Net weight (2.2 lb = 1 kg) 0.260 kg / 0 lb 9.2 oz (0.573 lb)

Model page created by Holger Struthoff. See "Data change" for further contributors.
