EL3302 /00 /12D /20D /22D /29D

Philips; Eindhoven (tubes international!); Miniwatt

Data
Forum
Pictures
Collections

  • Year
  • 1968
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 251317

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 10
  • Main principle
  • Audio-Amplification; 3 AF stage(s)
  • Wave bands
  • - without
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Batteries / addl. power jack / 5 x 1,5 / 8,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 cm = 2.4 inch
  • Power out
  • 0.4 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: EL3302 /00 /12D /20D /22D /29D - Philips; Eindhoven tubes
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 115 x 55 x 200 mm / 4.5 x 2.2 x 7.9 inch
  • Notes

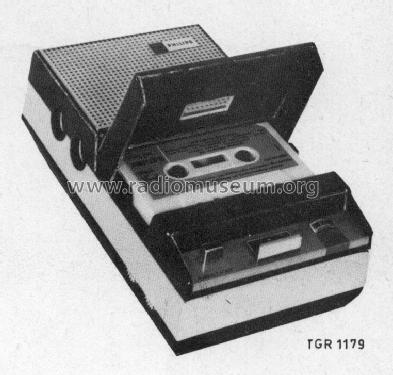

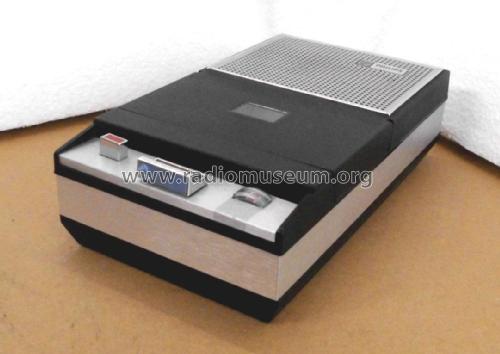

  • Mono cassette recorder and player EL3302.

    Speed: 4,75 cm/sec.

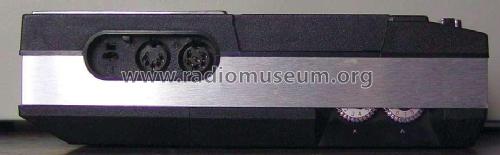

    1 combined input/output din connector:

    • Input: microphone (EL3797/50), radio, grammophone, recorder, amplifier, telephone adapter: 0.2mV / 2KΩ.
    • Output: external amplifier, recorder: 0.5V / 20KΩ.

    1 combined din connector for: headphones, external start/stop switch and external power supply (EL3786).

    • Headphones (EL3775/85) : 200mV in 1500Ω.

    1 connector for external loudspeaker (5-8Ω) with automatic cut-off internal loudspeaker.

    Frequency range: 80 - 10000 Hz (+- 6 dB)­.

    S/N ratio: 45dB or better.

  • Net weight (2.2 lb = 1 kg)
  • 1.350 kg / 2 lb 15.6 oz (2.974 lb)

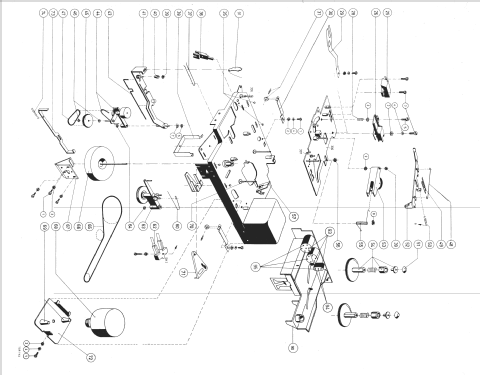

  • Literature/Schematics (1)
  • -- Original-techn. papers.
