EL3302A /15G

EL3302A /15G; Philips Electrical, (ID = 1248491) R-Player

EL3302A /15G; Philips Electrical, (ID = 1248492) R-Player
Use red slider bar for more.
EL3302A /15G; Philips Electrical, (ID = 1248491) R-Player
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Great Britain (UK)
Manufacturer / Brand:  Philips Electrical, Lamps, Industrial - Miniwatt; London
Year: 1968/1969 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 9: BC148 BC148 BC148 BC148 AC187 AC188 AC127 AC127 AC128
Main principle Audio-Amplification
Wave bands - without
Details Cassette-Recorder or -Player
Power type and voltage Dry Batteries / 5 x 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: EL3302A /15G - Philips Electrical, Lamps,
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.

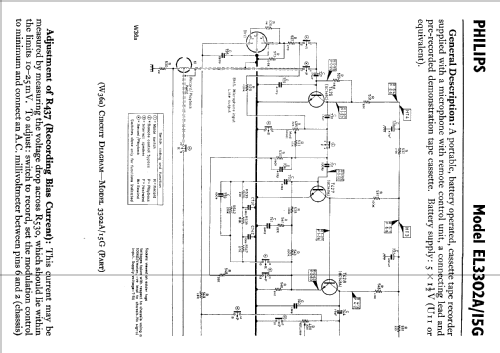

Source of data -- Schematic
Circuit diagram reference Radio and TV Servicing books (R&TVS) book

Model page created by Keith Staines. See "Data change" for further contributors.
