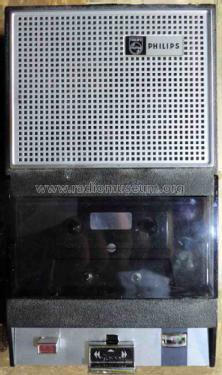

EL3302S /89P

Philips, Singapore

  • Year
  • 1973 ?
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 268154

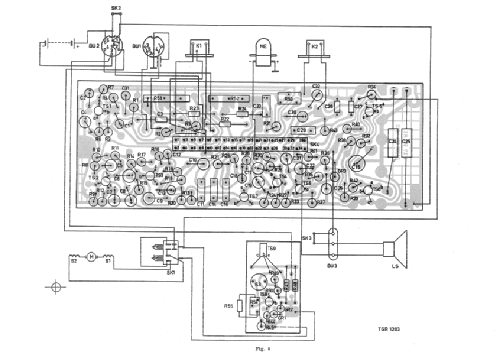

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Batteries / addl. power jack / C: 5 x 1,5 / 7,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Power out
  • 0.4 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: EL3302S /89P - Philips, Singapore
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 115 x 55 x 200 mm / 4.5 x 2.2 x 7.9 inch
  • Author
  • Model page created by Ciro Guidi. See "Data change" for further contributors.
