EL3310A

EL3310A; Philips Electrical, (ID = 755998) R-Player
Use red slider bar for more.
EL3310A; Philips Electrical, (ID = 755998) R-Player
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Great Britain (UK)
Manufacturer / Brand:  Philips Electrical, Lamps, Industrial - Miniwatt; London
Year: 1968 ? Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 8: BC109 BC109 BC108 BC108 AC188 AC187 AC126 AC127
Main principle Audio-Amplification
Wave bands - without
Details Cassette-Recorder or -Player
Power type and voltage Alternating Current supply (AC) / 100; 127; 220; 245 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out 1.8 W (unknown quality)
from Radiomuseum.org Model: EL3310A - Philips Electrical, Lamps,
Material Plastics (no bakelite or catalin)
Shape Book-shelf unit.
Dimensions (WHD) 14.5 x 3.75 x 8 inch / 368 x 95 x 203 mm
Notes Also produced as Stella model ST9111A.
Net weight (2.2 lb = 1 kg) 3.6 kg / 7 lb 14.9 oz (7.93 lb)

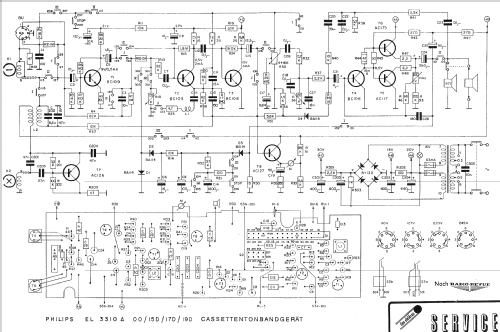

Source of data -- Schematic
Literature/Schematics (1) ERT Sheet1666

Model page created by Keith Staines. See "Data change" for further contributors.
