For model EL3782 /00 /01, Philips; Eindhoven (tubes international!); Miniwatt

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1963 ? Category: Microphone or Pick-up element
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: EL3782 /00 /01 - Philips; Eindhoven tubes
Shape Miscellaneous shapes - described under notes.
Notes

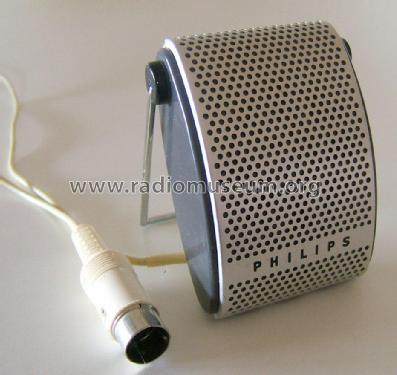

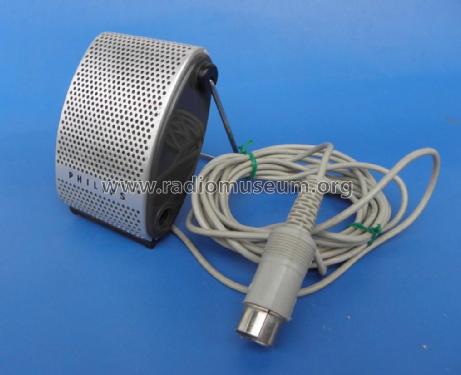

Dynamisches Mikrofon mit Aufsteller aus Federstahl.
Dreipoliger Diodenstecker.
Auf der Rückseite ein Umschalter für Musik / Stimme.
Seitlich ovale Form.


Dynamic directional microphone with male 3-pin DIN connector.
Impedance: 500Ω @ 1000Hz.
Sensitivity: depending on music/voice switch on the back of the unit: (see technical documents)

  1. Music (position "+"): 0,22 mV / µBar @ 1000Hz.
  2. Voice (position " - "): 0,15 mV / µBar @ 1000Hz.



Literature/Schematics (1) -- Original-techn. papers.

Model page created by Richard Sprenger. See "Data change" for further contributors.
