3750

3750; Philips; Eindhoven (ID = 962399) Ampl/Mixer
3750; Philips; Eindhoven (ID = 1855561) Ampl/Mixer 3750; Philips; Eindhoven (ID = 1855562) Ampl/Mixer
Use red slider bar for more.

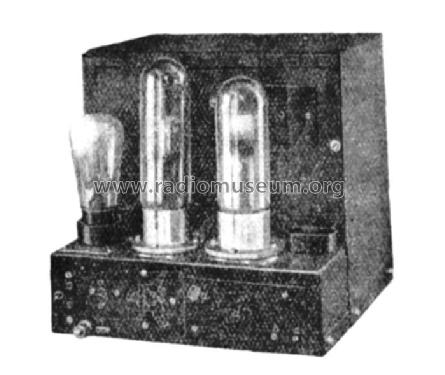

3750; Philips; Eindhoven (ID = 1855561) Ampl/Mixer
Philips; Eindhoven: 3750 [Ampl/Mixer] ID = 1855561 700x589
Select picture or schematic to display from thumbnails on the right and click for download.
For model 3750, Philips; Eindhoven (tubes international!); Miniwatt:
technical description

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1933 Category: Audio Amplifier or -mixer
Valves / Tubes 3: F460 MC1/60 DC1/60
Main principle Audio-Amplification; 2 AF stage(s)
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 103-253 Volt
Loudspeaker - This model requires external speaker(s).
Power out 20 W (unknown quality)
from Radiomuseum.org Model: 3750 - Philips; Eindhoven tubes
Material Metal case, TUBES VISIBLE
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 270 x 270 x 260 mm / 10.6 x 10.6 x 10.2 inch
Notes

5 connectors for speakers allowing 7 combinations of impedance. Output power at 1000 Hz: 16 W.

Net weight (2.2 lb = 1 kg) 17.2 kg / 37 lb 14.2 oz (37.885 lb)
Source of data -- Schematic
Mentioned in -- Original-techn. papers.

Model page created by Antonio Martins-Pais. See "Data change" for further contributors.
