- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1964 ?
- Category
- Microphone or Pick-up element
- Radiomuseum.org ID
- 131451
Sammlung
Sammlung
Sammlung
Sammlung
microphone du magnétophone Radiola RA9587
en France vendue sous la marque Radiola
Katalog

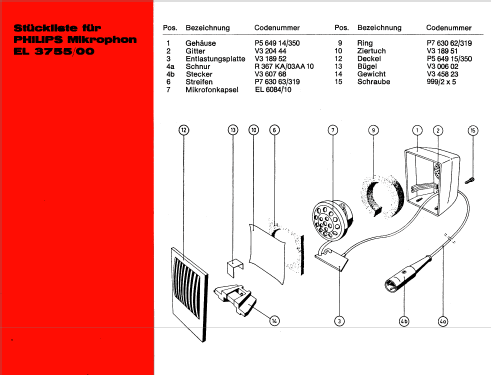

Click on the schematic thumbnail to request the schematic as a free document.
- Wave bands
- - without
- Power type and voltage
- No Power needed
- Loudspeaker
- - For headphones or amp.
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: EL3755 /00A - Philips; Eindhoven tubes
- Shape
- Miscellaneous shapes - described under notes.
- Dimensions (WHD)
- 47 x 62 x 30 mm / 1.9 x 2.4 x 1.2 inch
- Notes
- Dynamisches Mikrofon mit 500 Ohm Kapsel, Kabel und 3 Pol.- Diodenstecker.
- Net weight (2.2 lb = 1 kg)
- 0.1 kg / 0 lb 3.5 oz (0.22 lb)
- Author
- Model page created by Karlheinz Fischer. See "Data change" for further contributors.
- Other Models
-
Here you find 5233 models, 4365 with images and 3446 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Philips; Eindhoven (tubes international!); Miniwatt
Collections
The model is part of the collections of the following members.
