G26C581 Ch= G9

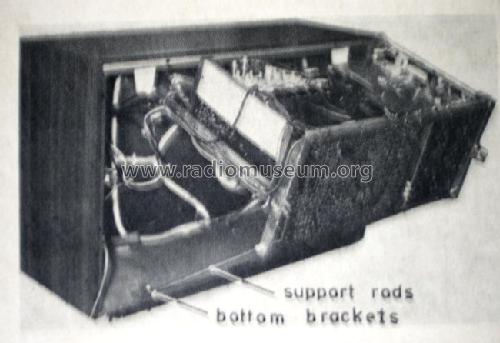

G26C581 Ch= G9; Philips Electrical, (ID = 861696) Television G26C581 Ch= G9; Philips Electrical, (ID = 861701) Television
Use red slider bar for more.
G26C581 Ch= G9; Philips Electrical, (ID = 861696) Television
Philips Electrical,: G26C581 Ch= G9 [Television] ID = 861696 350x539
Select picture or schematic to display from thumbnails on the right and click for download.
For model G26C581 Ch= G9, Philips Electrical, Lamps, Industrial - Miniwatt; London:
Trader Service Sheet 1976.

Country:  Great Britain (UK)
Manufacturer / Brand:  Philips Electrical, Lamps, Industrial - Miniwatt; London
Year: 1976 Category: Television Receiver (TV) or Monitor
Valves / Tubes 1: A66-410X
Semiconductors (the count is only for transistors) 27:
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Alternating Current supply (AC) / 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 6 inch = 15.2 cm
Power out 2 W (unknown quality)
from Radiomuseum.org Model: G26C581 Ch= G9 - Philips Electrical, Lamps,
Material Various materials
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 773 x 521 x 552 mm / 30.4 x 20.5 x 21.7 inch
Notes UHF tuner: Philips U6400, varicap, covering channels 21 to 69 ( Bands IV and V).
Literature/Schematics (1) Trader Service Sheet 23. 01.1976

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
