Electrophon GF851

Electrophon GF851; Philips Radios - (ID = 413942) R-Player
Use red slider bar for more.
Electrophon GF851; Philips Radios - (ID = 413942) R-Player
Philips Radios -: Electrophon GF851 [R-Player] ID = 413942 568x455

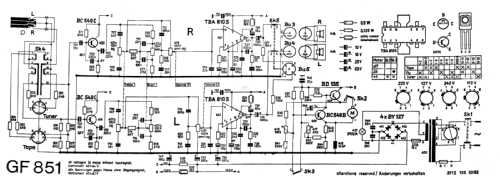

Select picture or schematic to display from thumbnails on the right and click for download.
For model Electrophon GF851, Philips Radios - Deutschland

Country:  Germany
Manufacturer / Brand:  Philips Radios - Deutschland
Brand

Deutsche Philips-Ges.
Year: 1974–1978 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 12:
Main principle Audio-Amplification
Wave bands - without
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 110; 127; 220; 240 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Electrophon GF851 - Philips Radios - Deutschland
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 490 x 140 x 300 mm / 19.3 x 5.5 x 11.8 inch
Notes Stereo-Plattenwechsler mit eingebautem Verstärker und zwei separaten Lautsprecherboxen (6 l Volumen) für 33/45 UpM. Keramik-System GP215. Ausgangsleistung: 2× 8 W (Musik).
Net weight (2.2 lb = 1 kg) 6 kg / 13 lb 3.5 oz (13.216 lb)
Collectors' prices
Source of data Handbuch VDRG 1974/1975

Model page created by Bernd P. Kieck. See "Data change" for further contributors.
