Électrophone - Portable Turntable 22GF110 /01L /01S /01X

Philips France; Paris

  • Year
  • 1968 ?
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 318587

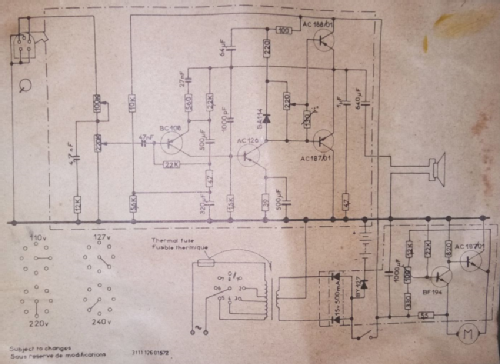

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 6
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Rec.Player+Audio.Amp+LS
  • Power type and voltage
  • Line / Batteries (any type) / 110; 127; 220; 240 / C: 6 x 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Électrophone - Portable Turntable 22GF110 /01L /01S /01X - Philips France; Paris
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 400 x 75 x 215 mm / 15.7 x 3 x 8.5 inch
  • Notes
  • Électrophone à 3 vitesses 33 - 45 - 78 t/min. HP elliptique inversé, Z = 4 ohms.

    3 exécutions:

    • /01L rouge
    • /01S bruin
    • /01X bleu

    3 speed: 33 - 45 - 78 rpm. Inverted speaker (magnet in front of membrane).

  • Net weight (2.2 lb = 1 kg)
  • 2.550 kg / 5 lb 9.9 oz (5.617 lb)
  • Author
  • Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
