Evoluon Radio 90EV100

Evoluon Radio 90EV100; Philips Hong Kong (ID = 1801953) Radio Evoluon Radio 90EV100; Philips Hong Kong (ID = 264558) Radio
Evoluon Radio 90EV100; Philips Hong Kong (ID = 264556) Radio Evoluon Radio 90EV100; Philips Hong Kong (ID = 264559) Radio
Evoluon Radio 90EV100; Philips Hong Kong (ID = 180028) Radio Evoluon Radio 90EV100; Philips Hong Kong (ID = 180029) Radio
Evoluon Radio 90EV100; Philips Hong Kong (ID = 180030) Radio Evoluon Radio 90EV100; Philips Hong Kong (ID = 1036010) Radio
Evoluon Radio 90EV100; Philips Hong Kong (ID = 1036011) Radio Evoluon Radio 90EV100; Philips Hong Kong (ID = 1036012) Radio
Use red slider bar for more.
Evoluon Radio 90EV100; Philips Hong Kong (ID = 1801953) Radio

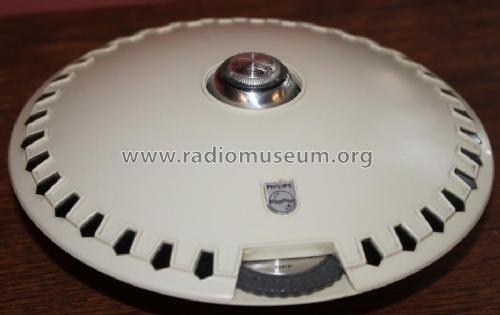

Philips Hong Kong: Evoluon Radio 90EV100 [Radio] ID = 1801953 933x589
Select picture or schematic to display from thumbnails on the right and click for download.
For model Evoluon Radio 90EV100, Philips Hong Kong

Country:  Hong Kong
Manufacturer / Brand:  Philips Hong Kong
Year: 1966 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6:
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2 inch = 5.1 cm
Power out
from Radiomuseum.org Model: Evoluon Radio 90EV100 - Philips Hong Kong
Material Plastics (no bakelite or catalin)
Shape Design Radio or Novelty / Gadget - fancy or unusual shape.
Dimensions (WHD) 155 x 65 x 155 mm / 6.1 x 2.6 x 6.1 inch

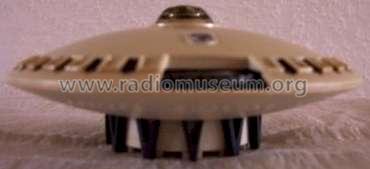

Notes Special UFO Designed Radio, looks like the Evoluon Exhibition Building from Philips Netherlands.
Source of data -- Collector info (Sammler)

Model page created by a member from A. See "Data change" for further contributors.
