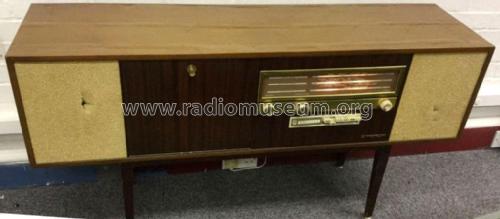

F5G20A ; Philips Electrical, (ID = 2178935) Radio
Philips Electrical,: F5G20A [Radio] ID = 2178935 1024x450
Select picture or schematic to display from thumbnails on the right and click for download.
For model F5G20A (520A), Philips Electrical, Lamps, Industrial - Miniwatt; London:
Ebay UK auction item 112653850554 seller charlies-vintage-clearances

Country:  Great Britain (UK)
Manufacturer / Brand:  Philips Electrical, Lamps, Industrial - Miniwatt; London
Year: 1962 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ECC85 ECH81 EBF89 EB91 ECL86 ECL86 EZ81
Main principle Superheterodyne (common); ZF/IF 470/10700 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)     8 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 200-250 Volt
Loudspeaker 2 Loudspeakers
Power out 3 W (unknown quality)
from Radiomuseum.org Model: F5G20A - Philips Electrical, Lamps,
Material Wooden case
Shape Console with any shape - in general
Notes Stereo radiogram (radio mono) fitted with Philips type AG1015 four speed auto-changer. Same chassis used in models F5G21A & F5G22A. Price £66.16s.2d. plus tax.
Price in first year of sale 67.00 GBP

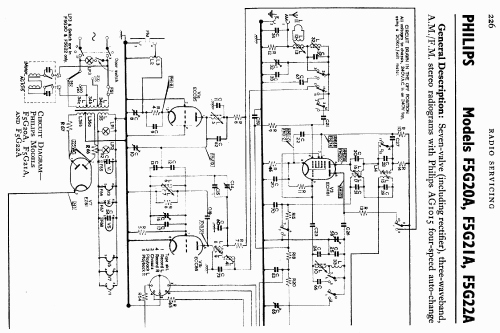

Source of data -- Schematic
Literature/Schematics (1) Radio And Television Servicing books (R&TVS) (Trader Sheet 1601.)

Model page created by Keith Staines. See "Data change" for further contributors.
