F5G96A

F5G96A; Philips Electrical, (ID = 595076) Radio

F5G96A; Philips Electrical, (ID = 595077) Radio
F5G96A; Philips Electrical, (ID = 1974011) Radio F5G96A; Philips Electrical, (ID = 1974012) Radio
F5G96A; Philips Electrical, (ID = 1974013) Radio F5G96A; Philips Electrical, (ID = 1974014) Radio
F5G96A; Philips Electrical, (ID = 1974016) Radio F5G96A; Philips Electrical, (ID = 1974017) Radio
Use red slider bar for more.

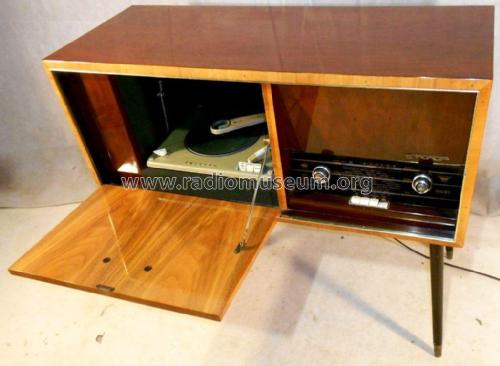

F5G96A; Philips Electrical, (ID = 1974011) Radio
Philips Electrical,: F5G96A [Radio] ID = 1974011 1024x750
Select picture or schematic to display from thumbnails on the right and click for download.
For model F5G96A, Philips Electrical, Lamps, Industrial - Miniwatt; London:
Ebay item no. 152017776981 seller zookoo

Country:  Great Britain (UK)
Manufacturer / Brand:  Philips Electrical, Lamps, Industrial - Miniwatt; London
Year: 1959 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 9: UF80 UF80 UCH81 UF89 UABC80 UL84 UCL82 UY85 UY85
Main principle Superheterodyne (common); ZF/IF 470/10700 kHz; 2 AF stage(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 200-250 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: F5G96A - Philips Electrical, Lamps,
Material Wooden case
Shape Console with any shape - in general
Notes Stereo radiogram fitted with record changer type AG1014. This model is derived from the G75U series
Price in first year of sale 71.00 GBP
Source of data -- Schematic
Circuit diagram reference Radio and TV Servicing books (R&TVS) book
Literature/Schematics (1) ERT Sheet 1228.

Model page created by Keith Staines. See "Data change" for further contributors.
