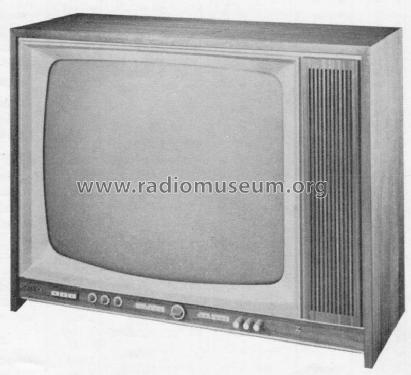

Aladin Luxus 23TD406A /00 /06 Ch= D5; Philips Radios - (ID = 1523706) Television
Philips Radios -: Aladin Luxus 23TD406A /00 /06 Ch= D5 [Television] ID = 1523706 800x729
Select picture or schematic to display from thumbnails on the right and click for download.
For model Aladin Luxus 23TD406A /00 /06 Ch= D5, Philips Radios - Deutschland:
Philips Service 23TD406A

Country:  Germany
Manufacturer / Brand:  Philips Radios - Deutschland
Brand

Deutsche Philips-Ges.
Year: 1965 Category: Television Receiver (TV) or Monitor
Valves / Tubes 17: PC900 PCF801 EF183 EF184 PCL84 PCH200 EF184 PCL86 PCH200 PCF802 PL500 PY88 DY86 PCH200 PF86 PCL85 AW59-11W
Semiconductors (the count is only for transistors) 3: AF139 AF139 AF121 OA70 OA81 BA100 BY100
Main principle Superhet with RF-stage; ZF/IF 38900 kHz
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details Radio Control (+Remote Wire etc)
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Aladin Luxus 23TD406A /00 /06 Ch= D5 - Philips Radios - Deutschland
Material Wooden case
Shape Tablemodel, low profile (big size).
Notes

Ausführungen: -00 dunkel, -06 hell
- VHF Kanalwähler mit Röhren
- UHF Tuner mit Transistoren
- Leistungsaufnahme: 165 W

Zubehör:
- Fernbedienung Typ 65 NT1170, Helligkeit, Ohrhörer, Lautstärke
- Fernbedienung Typ 66 NT1171, Helligkeit, Ton-Aus-Schalter, Lautstärke
- Fernbedienung Typ 65 Luxus NT 1172, Helligkeit, Lautstärke, VHF/UHF, Ohrhörer

Mentioned in - - Manufacturers Literature
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Walter Fackler. See "Data change" for further contributors.
