FM Tuner Module A3 696 75

Philips; Eindhoven (tubes international!); Miniwatt

Data
Forum
Pictures
Collections

  • Year
  • 1957 ?
  • Category
  • Pre-stage (adaptor for SW/FM/VHF/UHF incl. built-in), Frequency converter
  • Radiomuseum.org ID
  • 365434

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 1
  • Main principle
  • RF Converter/Adapter (not voltage converter); ZF/IF 10700 kHz
  • Tuned circuits
  • 1 FM circuit(s)
  • Wave bands
  • FM Broadcast Band Only
  • Power type and voltage
  • Powered by external power supply or a main unit. / AC 6,3 & DC 200 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: FM Tuner Module A3 696 75 - Philips; Eindhoven tubes
  • Shape
  • Chassis only or for «building in»
  • Dimensions (WHD)
  • 93 x 85 x 58 mm / 3.7 x 3.3 x 2.3 inch
  • Notes

  • Philips FM Tuner Module  A3 696 75, a.o. used in Philips models B7X63A, B7X72A and B7X73A.

  • Literature/Schematics (1)

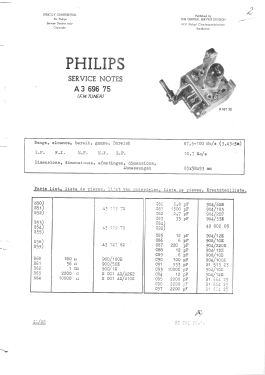

  • - - Manufacturers Literature (Philips Service Notes)
  • Author
  • Model page created by Evert J Rietbergen. See "Data change" for further contributors.
