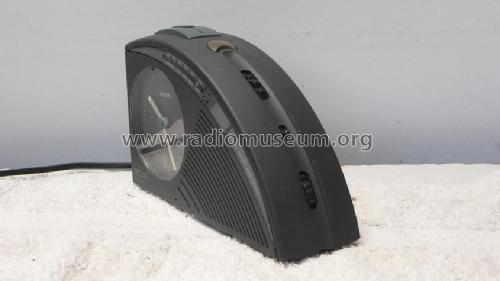

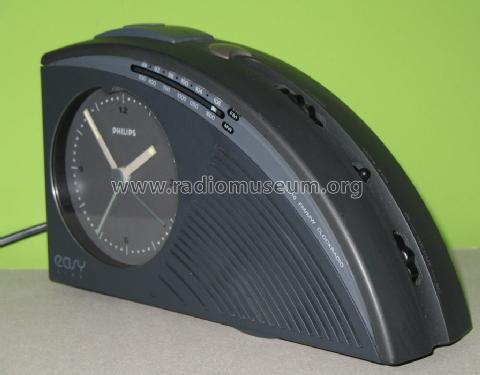

FM/MW Clockradio AJ3510/00

FM/MW Clockradio AJ3510/00; Philips 飞利浦; (ID = 747744) Radio FM/MW Clockradio AJ3510/00; Philips 飞利浦; (ID = 747745) Radio
FM/MW Clockradio AJ3510/00; Philips 飞利浦; (ID = 747746) Radio FM/MW Clockradio AJ3510/00; Philips 飞利浦; (ID = 747747) Radio
FM/MW Clockradio AJ3510/00; Philips 飞利浦; (ID = 747748) Radio FM/MW Clockradio AJ3510/00; Philips 飞利浦; (ID = 747749) Radio
FM/MW Clockradio AJ3510/00; Philips 飞利浦; (ID = 747750) Radio FM/MW Clockradio AJ3510/00; Philips 飞利浦; (ID = 747751) Radio
FM/MW Clockradio AJ3510/00; Philips 飞利浦; (ID = 1662870) Radio FM/MW Clockradio AJ3510/00; Philips 飞利浦; (ID = 1662871) Radio
Use red slider bar for more.
FM/MW Clockradio AJ3510/00; Philips 飞利浦; (ID = 747744) Radio
Philips 飞利浦;: FM/MW Clockradio AJ3510/00 [Radio] ID = 747744 933x673
Select picture or schematic to display from thumbnails on the right and click for download.
For model FM/MW Clockradio AJ3510/00, Philips 飞利浦; China:
Thanks for Első Zalai Rádiómúzeum Alapítvány ( radio-muzeum.hu), First Zala County Radio Museum Foundation, Hungary, Zalaegerszeg.

Country:  People's Republic of China
Manufacturer / Brand:  Philips 飞利浦; China
Year: 1990 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7:
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: FM/MW Clockradio AJ3510/00 - Philips 飞利浦; China
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel with Clock ((Alarm-) Clock Radio).
Dimensions (WHD) 208 x 125 x 92 mm / 8.2 x 4.9 x 3.6 inch
Notes 2 IC.
Net weight (2.2 lb = 1 kg) 0.760 kg / 1 lb 10.8 oz (1.674 lb)
Source of data - - Data from my own collection

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
