Four Band AM-FM Radio Receiver D-2813 /02
Philips; Eindhoven: Four Band AM-FM Radio Receiver D-2813 /02 [Radio] ID = 2041895 1400x931

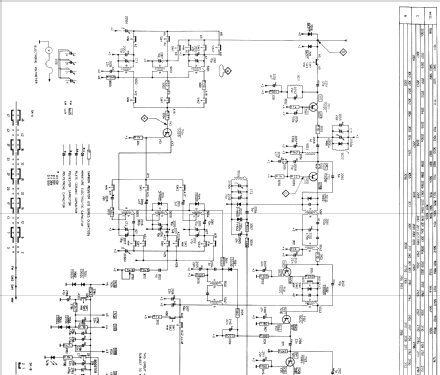

Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1980 ?? | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Semiconductors (the count is only for transistors) | Semiconductors present. |
|---|
| Main principle | Superheterodyne (common); ZF/IF 468/10700 kHz |
|---|---|
| Wave bands | Broadcast, 2 Short Wave plus FM or UHF. |
| Details | |
| Power type and voltage | Line / Batteries (any type) / 220 / 6 x 1,5 Volt |
| Loudspeaker | 3 Loudspeakers |
| Power out | 3 W (unknown quality) |
| from Radiomuseum.org | Model: Four Band AM-FM Radio Receiver D-2813 /02 - Philips; Eindhoven tubes |
| Material | Plastics (no bakelite or catalin) |
| Shape | Portable set > 8 inch (also usable without mains) |
| Dimensions (WHD) | 330 x 220 x 90 mm / 13 x 8.7 x 3.5 inch |
| Notes | Four band AM/FM (88-108 MHz) radio receiver with Power Booster. |
| Net weight (2.2 lb = 1 kg) | 2.2 kg / 4 lb 13.5 oz (4.846 lb) |
Model page created by Zenonas Langaitis. See "Data change" for further contributors.
