GA-207

GA-207; Philips; Eindhoven (ID = 288711) R-Player GA-207; Philips; Eindhoven (ID = 288779) R-Player
GA-207; Philips; Eindhoven (ID = 848583) R-Player GA-207; Philips; Eindhoven (ID = 1737280) R-Player
GA-207; Philips; Eindhoven (ID = 1737289) R-Player
Use red slider bar for more.
GA-207; Philips; Eindhoven (ID = 288711) R-Player
Philips; Eindhoven: GA-207 [R-Player] ID = 288711 576x614
Select picture or schematic to display from thumbnails on the right and click for download.
For model GA-207, Philips; Eindhoven (tubes international!); Miniwatt

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1973/1974 Category: Sound/Video Recorder and/or Player
Wave bands - without
Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 110; 127; 220; 240 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: GA-207 - Philips; Eindhoven tubes
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 350 x 120 x 280 mm / 13.8 x 4.7 x 11 inch

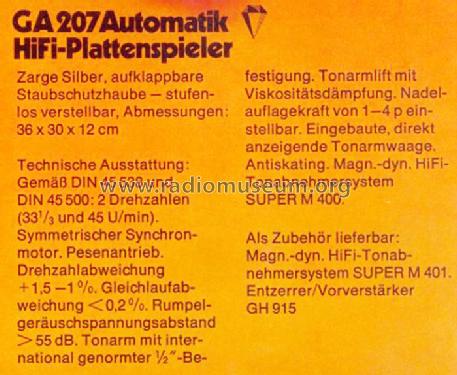

Notes Geschwindigkeiten: 33 und 45 UpM; Magnetodynamisches HiFi-Stereo-System M400 oder Magnetsystem Super M401. Übertragungsbereich 20-20000 Hz.
Net weight (2.2 lb = 1 kg) 3.5 kg / 7 lb 11.3 oz (7.709 lb)
Source of data Handbuch VDRG 1973/1974

Model page created by Mario Coelho. See "Data change" for further contributors.



All listed radios etc. from Philips; Eindhoven (tubes international!); Miniwatt
Here you find 4974 models, 4166 with images and 3319 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
