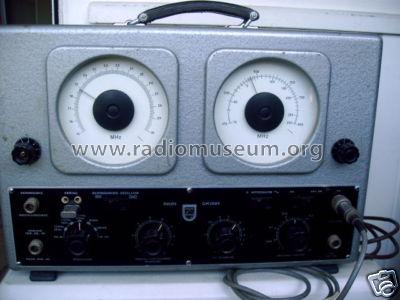

FM/AM Mess-Generator - Générateur GM2889 /01

Philips; Eindhoven (tubes international!); Miniwatt

  • Year
  • 1955 ?
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 137820

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 0
  • Number of Transistors
  • Semiconductors
  • OA70
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: FM/AM Mess-Generator - Générateur GM2889 /01 - Philips; Eindhoven tubes
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 440 x 330 x 240 mm / 17.3 x 13 x 9.4 inch
  • Notes
  • Fréquence de 5 à 225 Mc/s, peut être modulé en fréquence à 50 c/s et 400 c/s, tension de sortie réglable entre 0 et 50 mV, modulation AM et FM simultanées


    Preis ab 1956/57 1150,-DM

  • Net weight (2.2 lb = 1 kg)
  • 17 kg / 37 lb 7.1 oz (37.445 lb)
  • Price in first year of sale
  • 1,050.00 DM

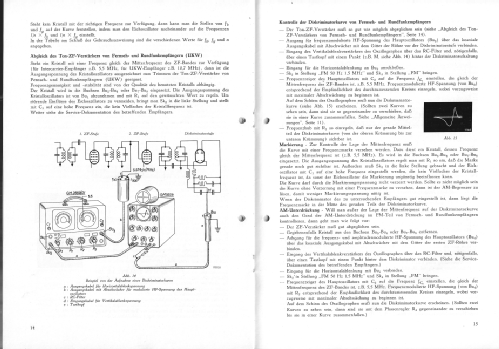

  • Literature/Schematics (1)
  • - - Manufacturers Literature
  • Author
  • Model page created by Raynal Aufils. See "Data change" for further contributors.
