11GF300 /01R

Philips France; Paris

  • Year
  • 1970 ?
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 177683

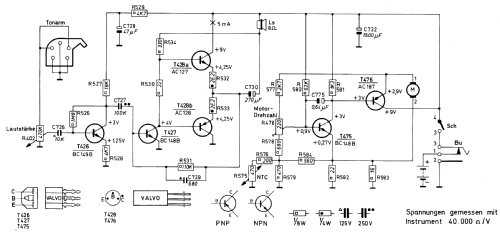

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Rec.Player+Audio.Amp+LS
  • Power type and voltage
  • Dry Batteries / 6 x 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: 11GF300 /01R - Philips France; Paris
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 320 x 110 x 170 mm / 12.6 x 4.3 x 6.7 inch
  • Author
  • Model page created by Hannes Wurnitsch. See "Data change" for further contributors.
