- Country
- Germany
- Manufacturer / Brand
- Philips Radios - Deutschland
- Year
- 1968–1971
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 89245
-
- Brand: Deutsche Philips-Ges.
- Number of Transistors
- 12
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Rec.Player+Audio.Amp+LS
- Power type and voltage
- Alternating Current supply (AC) / 110; 127; 220; 240 Volt
- Loudspeaker
- 2 Loudspeakers
- Power out
- 13 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org

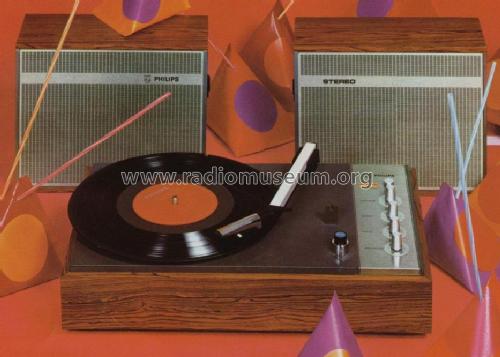

- Model: GF628 - Philips Radios - Deutschland
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 410 x 200 x 260 mm / 16.1 x 7.9 x 10.2 inch
- Notes
- 4 Geschwindigkeiten, Keramiksystem GP200 mit Duplo-Nadel 946/DS51. Stereo-NF-Verstärker mit 2 Endstufen je 6,5 W.
- Net weight (2.2 lb = 1 kg)
- 6.8 kg / 14 lb 15.6 oz (14.978 lb)
- Source of data
- Handbuch VDRG 1969/1970
- Mentioned in
- -- Original prospect or advert
- Author
- Model page created by Hannes Wurnitsch. See "Data change" for further contributors.
