• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1942 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 131935

• Number of Tubes
• 4

• Valves / Tubes
• EF6 EL6 EL6 AZ4 7475 C9

• Wave bands
• - without

• Details
• Power Supply (not only Batt.El.)

• Power type and voltage
• Alternating Current supply (AC) / 110-245 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

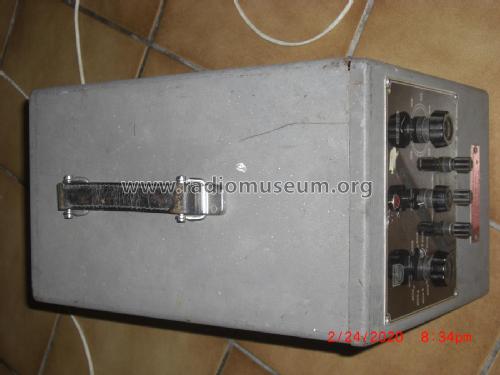

• Model: Gleichstrom-Speisungsgerät GM4560 - Philips; Eindhoven tubes

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 230 x 310 x 400 mm / 9.1 x 12.2 x 15.7 inch

• Notes
• Stromabnahme: 100 mA, Kurzschlussstrom: 400 mA, Innenwiderstand: weniger als 1Ω.
  Regelbereich: Einstellbare Gleichspannung zwischen ca. 145 V und 310 V mit 10 Stufen von je 15 V.

• Net weight (2.2 lb = 1 kg)
• 19 kg / 41 lb 13.6 oz (41.85 lb)

• Price in first year of sale
• 520.00 RM

• Mentioned in
• - - Manufacturers Literature (Philips technische Bibliothek 1942)

• Literature/Schematics (1)
• Philips: Daten und Schaltungen , Band 3

• Author
• Model page created by Jos Lauth. See "Data change" for further contributors.
