For model H3F87A, Philips France; Paris:

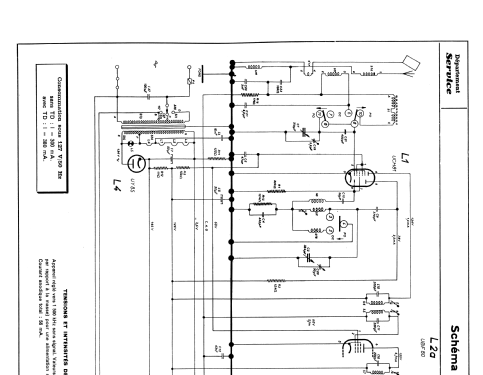

Aus den Serviceunterlagen

Country:  France
Manufacturer / Brand:  Philips France; Paris
Year: 1959/1960 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: UCH81 UBF80 UCL82 UY85
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 117; 127; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch
Power out
from Radiomuseum.org Model: H3F87A - Philips France; Paris
Material Bakelite case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 395 x 220 x 320 mm / 15.6 x 8.7 x 12.6 inch
Notes

2 gammes d'ondes : PO de 185 à 570 m, OC de 24 à 51 m. Cadre Ferroxcube de 30 cm incorporé. HP Z = 5 ohms. Prise stéréo. Lampe cadran FK51275 (10 V / 200 mA).

Tourne-disque NG2082 4 vitesses, avec tête amovible AG3016.

Coffret matière moulée avec façade en polystyrène, deux coloris : bordeaux ou gris.

Voir aussi même modèle H3F84A avec PO + GO.

Mentioned in -- Original-techn. papers.

Model page created by Heiko zur Mühlen. See "Data change" for further contributors.
