Hearing aid 12M

Hearing aid 12M; Philips; Eindhoven (ID = 75228) Misc Hearing aid 12M; Philips; Eindhoven (ID = 75229) Misc
Hearing aid 12M; Philips; Eindhoven (ID = 75230) Misc Hearing aid 12M; Philips; Eindhoven (ID = 75231) Misc
Use red slider bar for more.

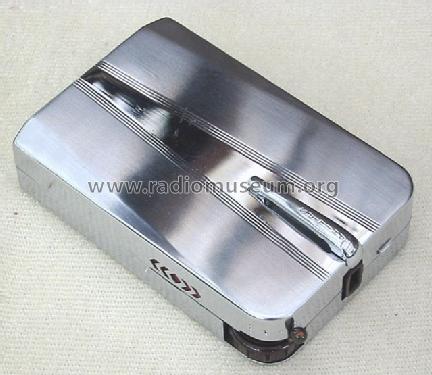

Hearing aid 12M; Philips; Eindhoven (ID = 75228) Misc
Philips; Eindhoven: Hearing aid 12M [Misc] ID = 75228 640x555
Select picture or schematic to display from thumbnails on the right and click for download.
For model Hearing aid 12M, Philips; Eindhoven (tubes international!); Miniwatt

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1961–1965 ?? Category: Miscellaneous (Other, Various) - see notes
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details Hearing aid
Power type and voltage Dry Batteries / 2x1.5 Volt
Loudspeaker - only for Earphone!
Power out
from Radiomuseum.org Model: Hearing aid 12M - Philips; Eindhoven tubes
Material Metal case
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 59 x 90 x 20 mm / 2.3 x 3.5 x 0.8 inch
Notes Hearing aid for pocket use.
Net weight (2.2 lb = 1 kg) 0.3 kg / 0 lb 10.6 oz (0.661 lb)

Model page created by a member from D. See "Data change" for further contributors.
