• Year
  • 1980
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 208096

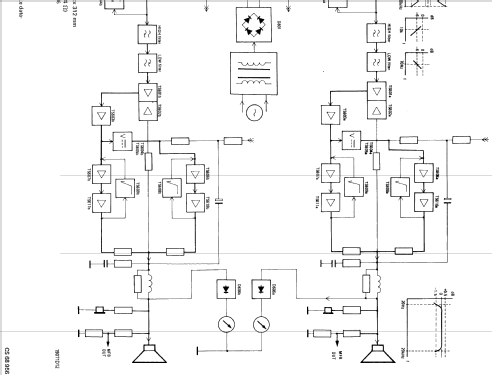

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 26
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Hi-Fi equipment
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 220 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 40 W (unknown quality)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Hi-Fi Amplifier A6393 /24 - Philips; Eindhoven tubes
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 420 x 105 x 312 mm / 16.5 x 4.1 x 12.3 inch
  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by Eduard Abfalterer. See "Data change" for further contributors.
