• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1957

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 210785

• Wave bands
• - without

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

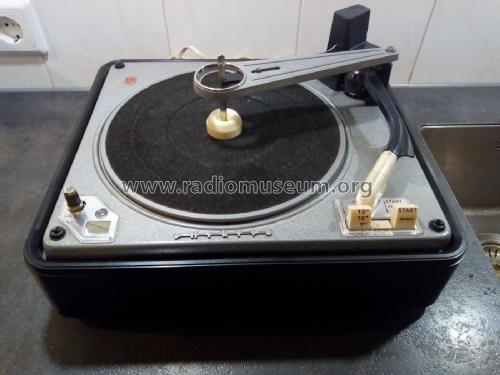

• Model: Hi-Fi Automatische Platenwisselaar AG1105 Ch=AG1005 - Philips; Eindhoven tubes

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 385 x 340 x 0 mm / 15.2 x 13.4 x 0 inch

• Notes
• Chassis AG1005 in frame.

  Variants:
  AG1105-32: 110; 127; 220; 240 V / 50 Hz (Norway)
  AG1105-46: 110 V / 60 Hz
  AG1105-47: 115 V / 60 Hz (Canada)
  AG1105-48: 115 V / 25 Hz (Canada)
  AG1105-76: 220 V / 60 Hz
  AG1105-95: 110; 127; 220; 240 V / 50 Hz

  3 speeds: 78, 45, 33.3 rpm. Power consumption 11 W. Illumination lamp 9512W. Identical to Hi-Fi Record Changer AG2105, with the exception of the 45 changer spindle.

• Price in first year of sale
• 290.00 HFL

• Source of data
• - - Manufacturers Literature

• Mentioned in
• -- Original prospect or advert (Philips "High-Fidelity" 1957)
