22GH923 (AG9023) /00 /16 /17 /19 /22 /29 /32

22GH923 	/00 /16 /17 /19 /22 /29 /32; Philips; Eindhoven (ID = 402498) Ampl/Mixer

22GH923 	/00 /16 /17 /19 /22 /29 /32; Philips; Eindhoven (ID = 402499) Ampl/Mixer

22GH923 	/00 /16 /17 /19 /22 /29 /32; Philips; Eindhoven (ID = 402504) Ampl/Mixer

22GH923 	/00 /16 /17 /19 /22 /29 /32; Philips; Eindhoven (ID = 402500) Ampl/Mixer

22GH923 	/00 /16 /17 /19 /22 /29 /32; Philips; Eindhoven (ID = 776085) Ampl/Mixer

22GH923 	/00 /16 /17 /19 /22 /29 /32; Philips; Eindhoven (ID = 1519119) Ampl/Mixer

22GH923 	/00 /16 /17 /19 /22 /29 /32; Philips; Eindhoven (ID = 1519120) Ampl/Mixer

22GH923 	/00 /16 /17 /19 /22 /29 /32; Philips; Eindhoven (ID = 1519121) Ampl/Mixer

22GH923 	/00 /16 /17 /19 /22 /29 /32; Philips; Eindhoven (ID = 1519122) Ampl/Mixer

22GH923 	/00 /16 /17 /19 /22 /29 /32; Philips; Eindhoven (ID = 1519123) Ampl/Mixer
22GH923 	/00 /16 /17 /19 /22 /29 /32; Philips; Eindhoven (ID = 117840) Ampl/Mixer 22GH923 	/00 /16 /17 /19 /22 /29 /32; Philips; Eindhoven (ID = 383395) Ampl/Mixer
Use red slider bar for more.
22GH923 	/00 /16 /17 /19 /22 /29 /32; Philips; Eindhoven (ID = 117840) Ampl/Mixer
Philips; Eindhoven: 22GH923 /00 /16 /17 /19 /22 /29 /32 [Ampl/Mixer] ID = 117840 933x439
Select picture or schematic to display from thumbnails on the right and click for download.
For model 22GH923 (AG9023) /00 /16 /17 /19 /22 /29 /32, Philips; Eindhoven (tubes international!); Miniwatt

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1966–1968 Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) 16: AC126 AC126 AC172 AC125 AC132 AC127 AD149 AD149 AC126 AC126 AC172 AC125 AC132 AC127 AD149 AD149
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 220; 240 Volt
Loudspeaker - This model requires external speaker(s).
Power out 14 W (undistorted)
from Radiomuseum.org Model: 22GH923 /00 /16 /17 /19 /22 /29 /32 - Philips; Eindhoven tubes
Material Wooden case
Shape Book-shelf unit.
Dimensions (WHD) 339 x 135 x 210 mm / 13.3 x 5.3 x 8.3 inch
Notes
Stereo-Verstärker, Nennleistung 2 x 7 Watt (Effektivwert) in 8 Ohm.
Eingänge: Phono kristall, Tuner, Band, Phono Magnet.

Stereo amplifier, RMS power 2 x 7 Watt in 8 Ohm.
Inputs: Tape in/out; PU magn; PU xtal; Tuner.
Net weight (2.2 lb = 1 kg) 3.7 kg / 8 lb 2.4 oz (8.15 lb)
Price in first year of sale 2,990.00 ATS
Collectors' prices
Source of data Handbuch VDRG 1966/1967 / Radiokatalog Band 2, Ernst Erb
Mentioned in -- Original prospect or advert

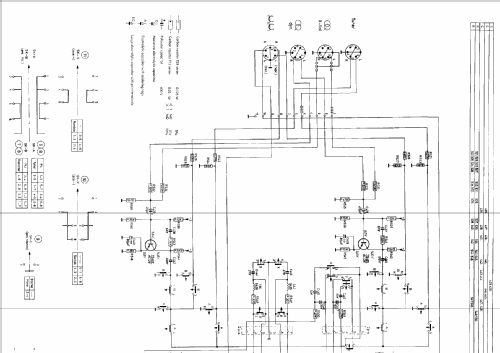

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Hannes Wurnitsch. See "Data change" for further contributors.
