High Fidelity EV4430

Philips Australia

Data
Forum
Pictures
Collections

  • Year
  • 1958–1961
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 338690

 Technical Specifications

  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Power type and voltage
  • Alternating Current supply (AC)
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 8 W (unknown quality)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: High Fidelity EV4430 - Philips Australia
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 10 x 4.5 x 7.5 inch / 254 x 114 x 191 mm
  • Notes

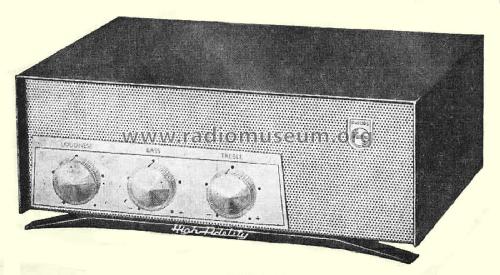

  • Philips Model EV4430 High Fidelity Amplifier

    Low, compact, high fidelity amplifier for record, FM broadcast, tape or TV sound reproduction. Nominal power output 8 watts. Total harmonic distortion less than than 1% at 5 watts output with smooth overload characteristic. Input impedance 500,000 ohms. Frequency range is flat within 1 db from 30 to 15,000 c/s (Hz). Controls include loudness and tone. Both bass and treble control allow variation of response from +11 db to -15 db at 50 and 10,000 c/s (Hz) respectively. Amplifier housed in steel cabinet finished in baked enamel with matt chrome front and gold escutcheon. (FROM MINGAY'S PRICE SERVICE)

    Two EV4430 amplifiers can be paired with matching Stereo Control Unit Model EV4407.

  • Price in first year of sale
  • 47.75 AUS £
  • Author
  • Model page created by Martin Kent. See "Data change" for further contributors.
