High Fidelity Tuner Amplifier 22GH940 /00Z

• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1968 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 247430

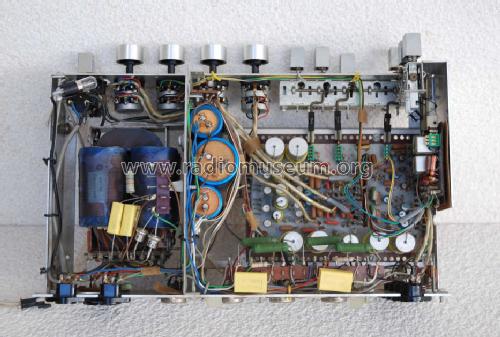

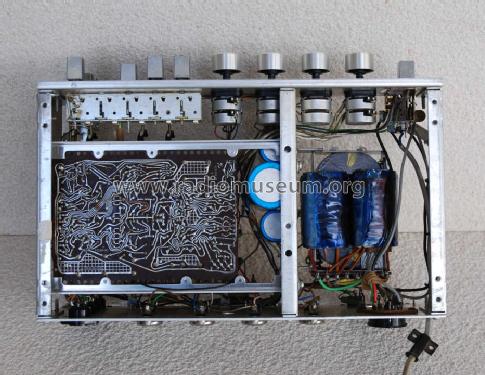

• Picture

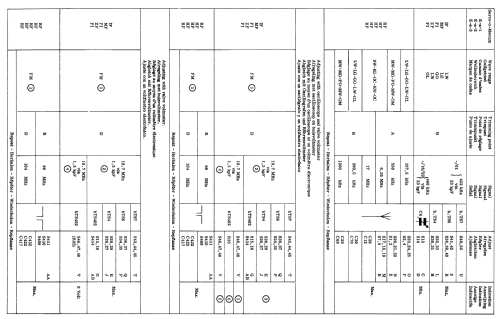

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220; 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 12 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: High Fidelity Tuner Amplifier 22GH940 /00Z - Philips; Eindhoven tubes

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 660 x 150 x 220 mm / 26 x 5.9 x 8.7 inch

• Notes

• The model consists of a tuner section 22GH944/50 and an amplifier section 22GH943/50

• Author
• Model page created by José Manuel Silvestre. See "Data change" for further contributors.
