• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1961/1962

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 185458

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 8

• Semiconductors
• AF114 AF115 AF116 AF116 AF116 OC75 OC72 OC72 OA90 OA85 OA79 OA79 OA79

• Main principle
• Superheterodyne (common); ZF/IF 452/10700 kHz; 2 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Dry Batteries / 6 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Power out
• 0.35 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

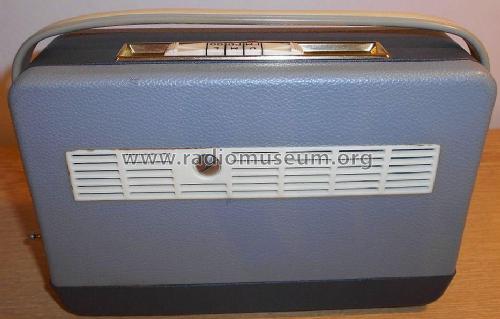

• Model: L3W11T /00G - Philips; Eindhoven tubes

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 200 x 135 x 64 mm / 7.9 x 5.3 x 2.5 inch

• Notes

• Ausführung grau/dunkelgrau.

• Net weight (2.2 lb = 1 kg)
• 1.2 kg / 2 lb 10.3 oz (2.643 lb)

• Source of data
• -- Original-techn. papers.
