• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1965–1967

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 26354

• • Brand: Deutsche Philips-Ges.

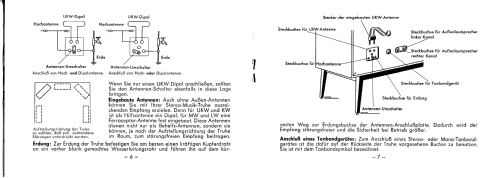

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes
• ECC85 ECH81 EAF801 EF184 EM87 EM87 ECC808 ECL86 ECL86

• Number of Transistors
• 4

• Semiconductors
• B250C150 AC126 AC126 AF126 AF126 OA79 OA79 AA119 AA119 AA119 AA119 AA119 AA119 AA119

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)     12 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 220 Volt

• Loudspeaker
• 4 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Jupiter Stereo Truhe F6D42A - Philips Radios - Deutschland

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 1240 x 700 x 370 mm / 48.8 x 27.6 x 14.6 inch

• Notes

• Phono-Chassis: AG1025W

  Radio-Chassis außer Ausgangsüberträger baugleich mit B7D42AS, siehe auch B5D41A.

  Bemerkung:  Das Handbuch VDRG 1965/1966 und 1966/1967 erwähnt für die Transistoren: 4x AF126.

• Net weight (2.2 lb = 1 kg)
• 35 kg / 77 lb 1.5 oz (77.093 lb)

• External source of data
• erb

• Source of data
• Handbuch VDRG 1965/1966

• Mentioned in
• Handbuch VDRG 1966/1967
